GraphQL adoption patterns

GraphQL is a query language and runtime designed by Facebook in 2012 and publicly released in 2015. It has gained widespread popularity in recent years, with many companies adopting it as their primary API architecture. It is a query language and runtime that allows clients to request data from servers using a unified interface. One of the reasons for its popularity is its flexibility, which allows developers to implement it in different ways depending on their use cases. In this blog post, we will explore four common GraphQL adoption patterns: client only, backend for frontend, the monolith, and multiple overlapping graphs.

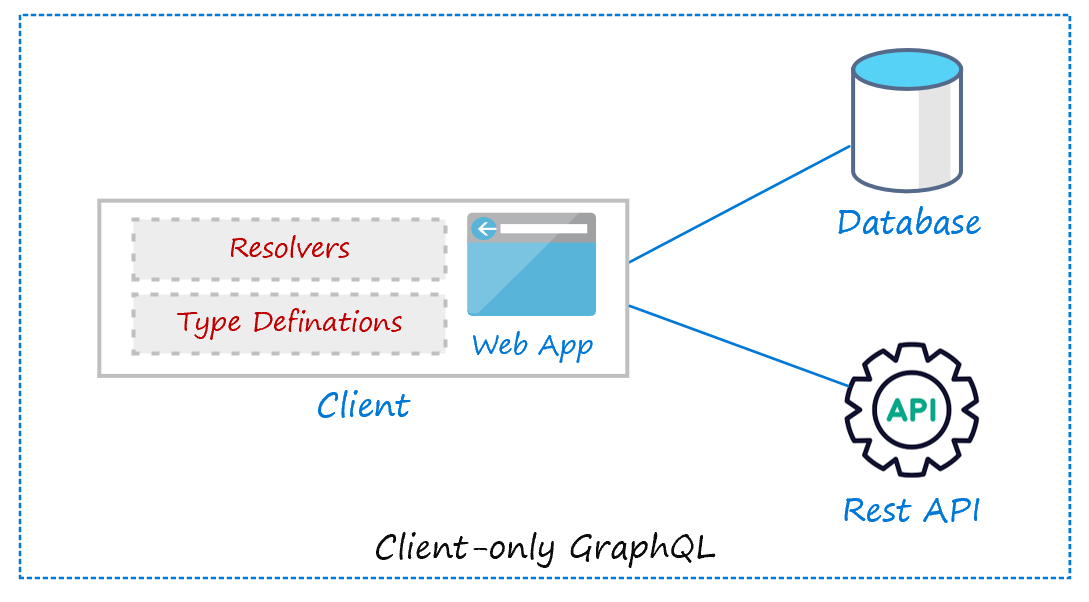

1. Client Only

In the client-only pattern, GraphQL is used only on the client side. The client sends queries to a server, which responds with JSON data. The server does not have any knowledge of GraphQL, and the client is responsible for parsing and processing the data. This pattern is useful when building static sites, single-page applications, or when using GraphQL as a layer on top of REST APIs.

Use Cases

• Building static sites with dynamic data: GraphQL can be used to query data from a server and then generate a static site using a static site generator like Gatsby or Next.js.
• Single-page applications: GraphQL can be used as a layer on top of REST APIs to simplify data access and reduce the amount of data sent over the network.
• Mobile applications: GraphQL can be used to optimize data access for mobile applications, reducing the amount of data sent over the network and improving performance.

Pros and Cons

Pros:

• Fast development: Client-only GraphQL applications can be developed quickly and with minimal server infrastructure.
• Reduced network overhead: GraphQL allows clients to specify exactly what data they need, reducing the amount of data sent over the network and improving performance.
• Better developer experience: GraphQL provides a simple, consistent, and self-documenting API for data access, making it easier for developers to work with data.

Cons:

• Limited functionality: Client-only GraphQL applications can only access data that is available on the client-side or provided by external APIs.
• Limited caching: Client-only GraphQL applications rely on client-side caching, which can be difficult to manage and can lead to stale data.
• Security concerns: Client-only GraphQL applications may expose sensitive data to users, making it important to carefully manage data access and authorization.

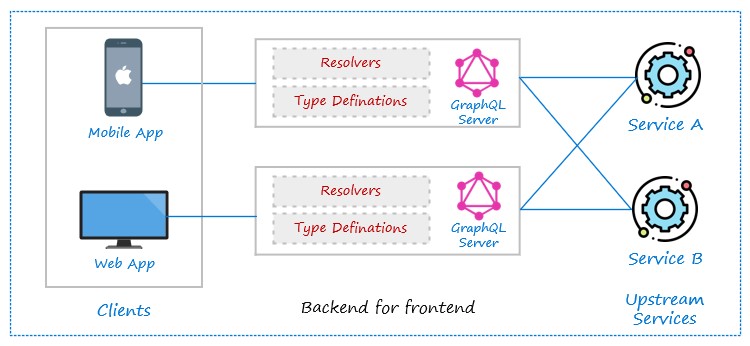

2. Backend for Frontend

In the backend for frontend (BFF) pattern, each frontend client has its own GraphQL server. The server acts as an intermediary between the frontend and the backend API. It handles the mapping of GraphQL queries to REST API calls, as well as any data transformations required to meet the specific needs of the client. This pattern allows for greater flexibility and customization on the client side, without affecting the backend API.

Use Cases

• Multi-platform applications: GraphQL can be used to build APIs that serve multiple platforms, such as web, mobile, and IoT devices, by adapting the data format to the needs of each platform.
• Personalized experiences: GraphQL can be used to build APIs that provide personalized experiences to users based on their preferences, location, or other contextual data.
• A/B testing: GraphQL can be used to build APIs that support A/B testing by allowing clients to send different queries to different versions of the API.

Pros and Cons

Pros:

• Better performance: BFF GraphQL servers can optimize data access for specific clients, reducing the amount of data sent over the network and improving performance.
• Greater flexibility: BFF GraphQL servers can adapt to the specific needs of each client, providing a more customized and personalized experience.
• Easier integration: BFF GraphQL servers can integrate with multiple backend services, providing a unified interface for data access.

Cons:

• Increased complexity: BFF GraphQL servers add an additional layer of complexity to the system, requiring careful design and implementation.
• Increased maintenance: BFF GraphQL servers require additional maintenance and testing, which can increase the workload for developers.
• Increased latency: BFF GraphQL servers add an additional network hop, which can increase latency and reduce performance.

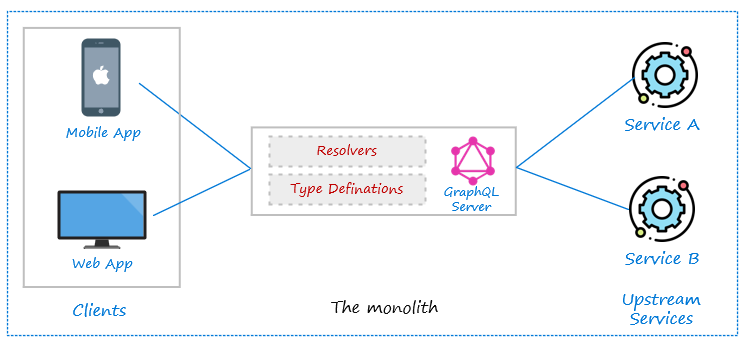

3. The Monolith

In the monolith pattern, GraphQL is integrated into a monolithic architecture. The GraphQL server acts as a single point of entry to the entire system, and all requests are routed through it. This pattern is useful when building large, complex applications with multiple services, as it provides a unified interface for data access. However, it can also lead to performance issues and scaling challenges.

Use Cases

• E-commerce platforms: GraphQL can be used to build monolithic e-commerce platforms that integrate with multiple services such as payment gateways, shipping providers, and inventory management systems.
• Content management systems: GraphQL can be used to build monolithic content management systems that integrate with multiple services such as databases, search engines, and media servers.
• Social networks: GraphQL can be used to build monolithic social networks that integrate with multiple services such as authentication providers, messaging services, and notification services.

Pros and Cons

Pros:

• Simplified data access: Monolithic GraphQL servers provide a unified interface for data access, simplifying development and reducing the need for multiple APIs.
• Improved performance: Monolithic GraphQL servers can optimize data access and reduce network overhead, improving performance.
• Easier testing: Monolithic GraphQL servers can be easier to test than systems with multiple APIs, as they provide a consistent interface for data access.

Cons:

• Limited scalability: Monolithic GraphQL servers can be difficult to scale as the system grows, leading to performance and reliability issues.
• Limited flexibility: Monolithic GraphQL servers can be difficult to modify or extend, as they often rely on a single codebase and data schema.
• Limited modularity: Monolithic GraphQL servers can be difficult to break down into smaller, more manageable components, making it harder to reuse code and scale the system.

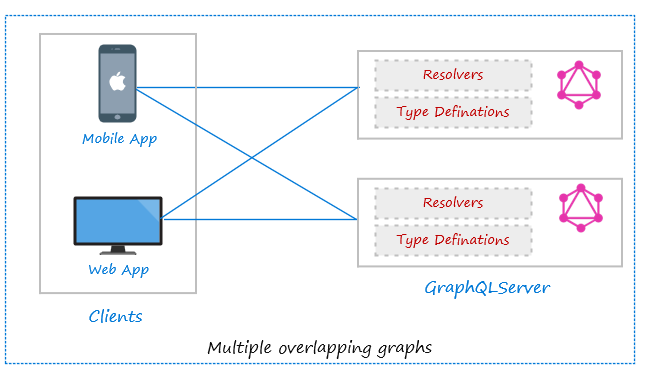

4. Multiple Overlapping Graphs

In the multiple overlapping graphs pattern, there are multiple GraphQL servers that serve different parts of the application. Each server is responsible for a specific domain, and they can overlap in some areas. This pattern allows for greater modularity and flexibility, as each server can be optimized for its specific domain. It also allows for easier scaling and testing, as each server can be deployed independently.

Use Cases

• Microservices architectures: GraphQL can be used to build APIs for microservices architectures, where each service has its own GraphQL server.
• Decoupled architectures: GraphQL can be used to build APIs for decoupled architectures, where different parts of the system are developed and deployed independently.
• Modular architectures: GraphQL can be used to build APIs for modular architectures, where each module has its own GraphQL server and can be reused across different applications or systems.

Pros and Cons

Pros:

• Improved modularity: Multiple overlapping GraphQL servers provide a more modular architecture, making it easier to break down the system into smaller, more manageable components.
• Improved scalability: Multiple overlapping GraphQL servers can be easier to scale than monolithic servers, as they allow for more granular control over data access and network traffic.
• Improved flexibility: Multiple overlapping GraphQL servers can adapt to the specific needs of each domain, providing a more customized and flexible system.

Cons:

• Increased complexity: Multiple overlapping GraphQL servers can add additional complexity to the system, requiring careful design and implementation.
• Increased maintenance: Multiple overlapping GraphQL servers require additional maintenance and testing, which can increase the workload for developers.
• Increased latency: Multiple overlapping GraphQL servers can add additional network hops, which can increase latency and reduce performance.

In conclusion, GraphQL adoption patterns vary depending on the use case and architecture of the application. The client-only pattern is useful for static sites and single-page applications, while the BFF pattern provides greater flexibility on the client side. The monolith pattern is useful for large, complex applications with multiple services, and the multiple overlapping graphs pattern allows for greater modularity and flexibility. As GraphQL continues to gain popularity, we can expect to see new patterns emerge as developers explore new ways to use this powerful technology.
